Applications

Passive Waveguide Components

Rat-Race hybrids with rectangular coaxial ports for a feeding networks

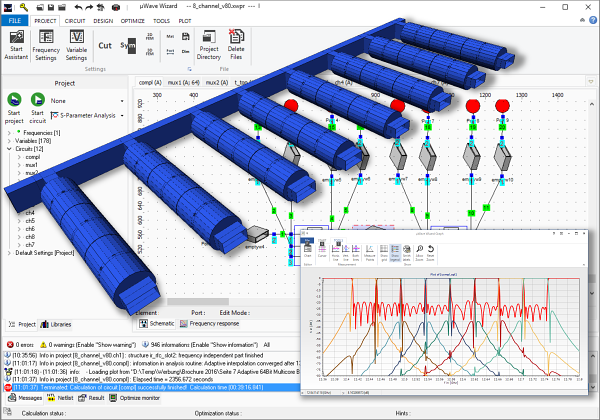

Seven channel manifold multiplexer with dual mode filters (Courtesy by Mician Global Engineering)

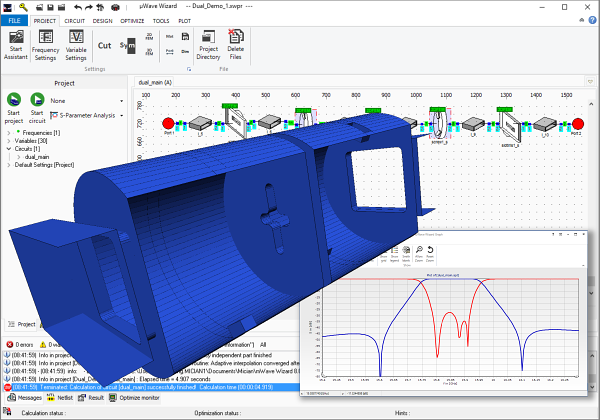

Dual-mode bandpass filter with a cross shaped iris and coupling screws

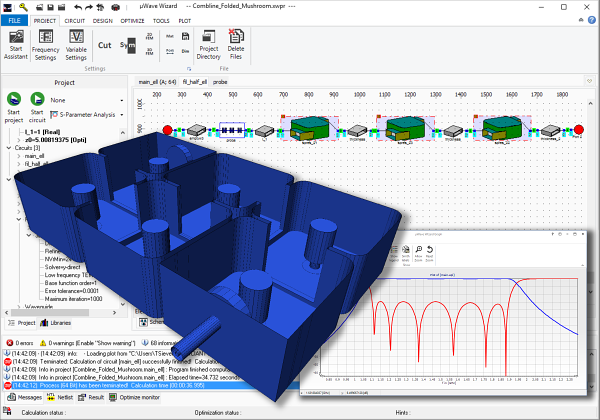

Six order folded combline filter with electric probes

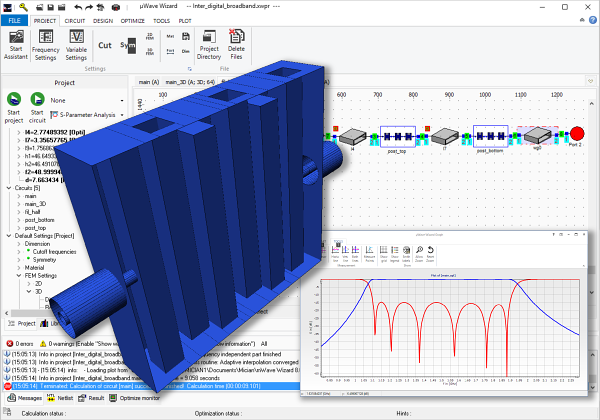

Six order interdigital filter with very broadband characteristics

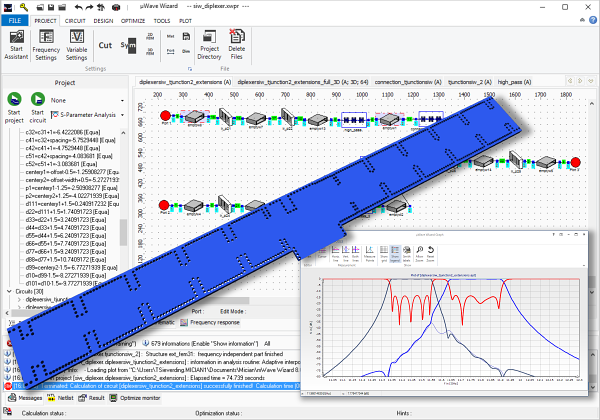

Diplexer with a compensated t-junction in SIW technique

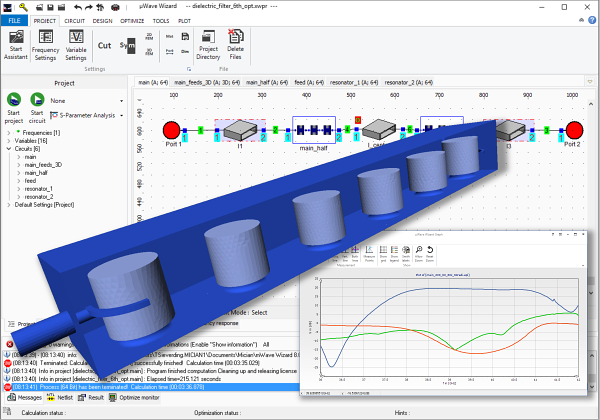

Six order bandpass filter with dielectric loaded resonators

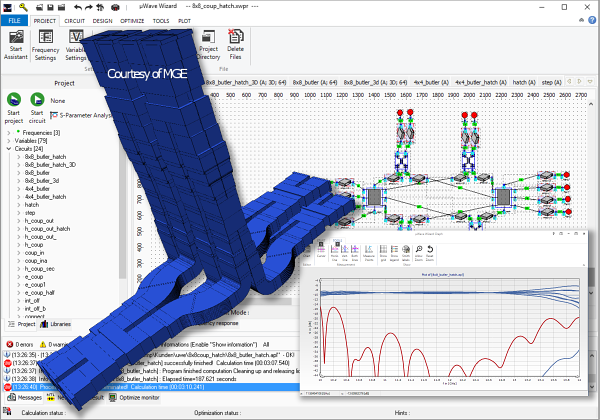

Butler matrix 8 x 8 (Courtesy by Mician Global Engineering)

Antennas & Reflectors

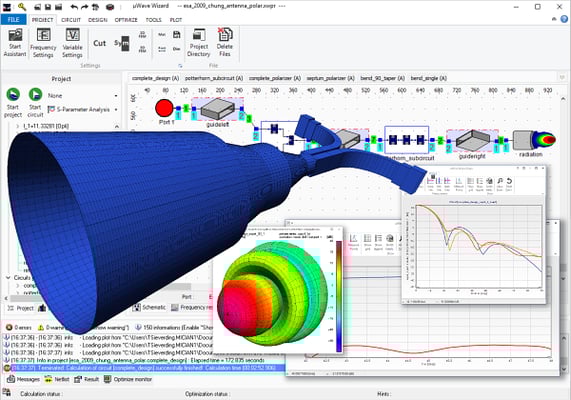

Horn antenna and feeding by a septum polarizer

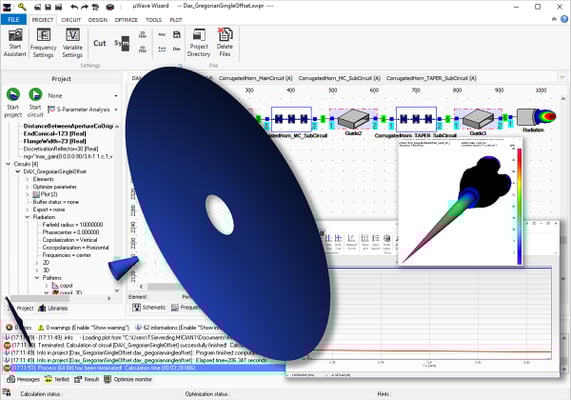

Displaced axis Gregorian reflector with a feeding corrugated horn

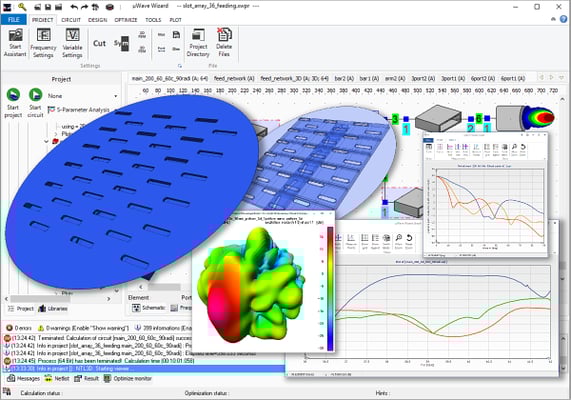

6 x 6 slot array including feeding network

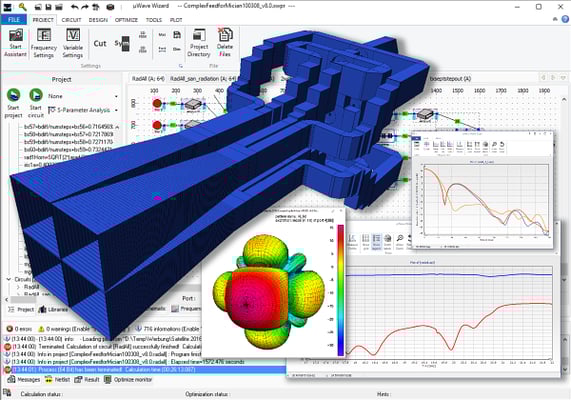

Feeding network with four quadratic horn antennas (Courtesy of Custom Microwave)

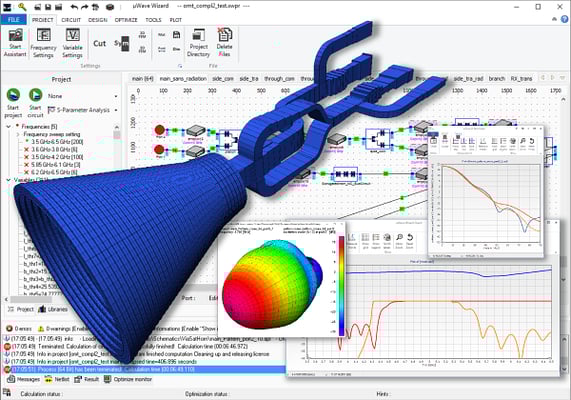

Dual band corrugated horn antenna with feeding network and a Boifot junction
