Resonance Analysis

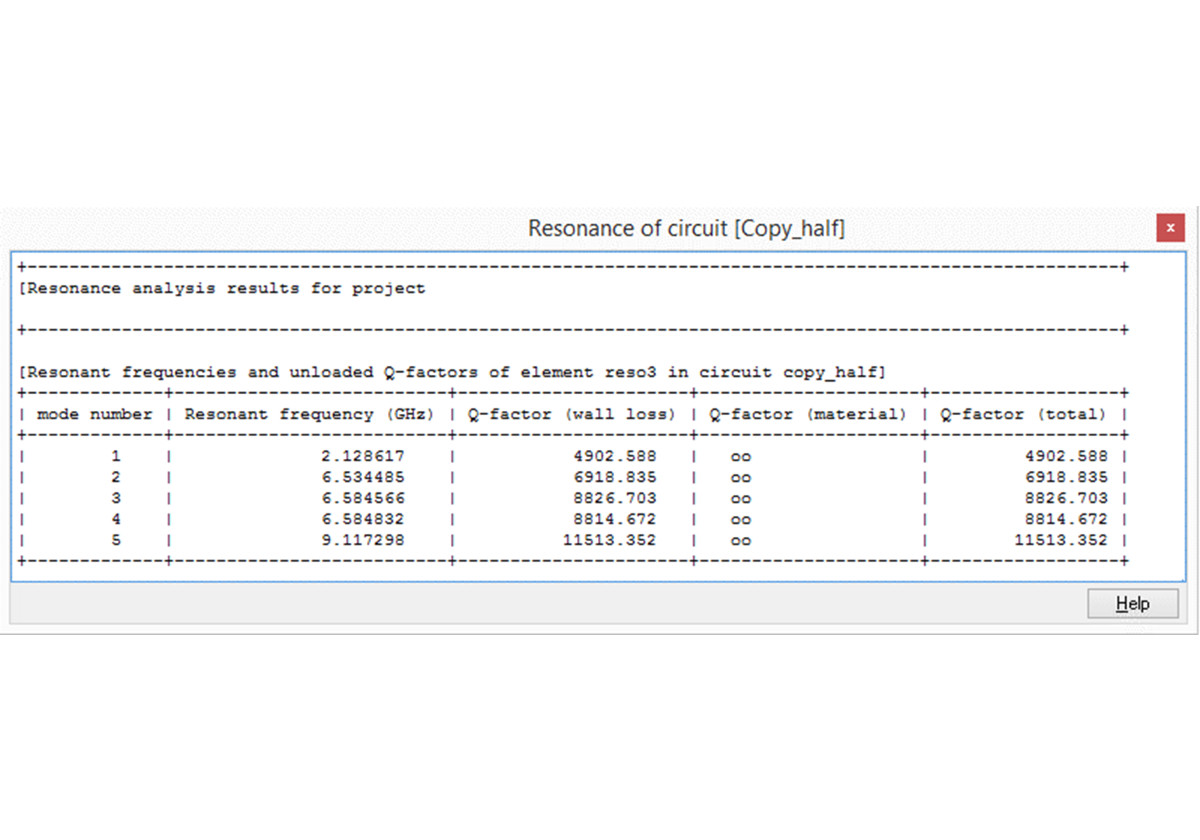

The computation of the resonance frequency is important for the design of filters, in particular for the layout of combline filters. The computation of the resonance frequency with µWave Wizard™ is carried out by using the included 3D-Finite Element Method (FEM) solver. A 3D-FEM mesh is generated for the element or the circuit and the resonance frequency is computed based on this mesh. 3D-FEM can be used to calculate the resonance frequency of any structure.

It is also possible to visualize the electro-magnetic fields of the resonant modes in µWave Wizard's™ 3D viewer
